Насосы переменного объема серии H1 представляют собой компактные агрегаты с высокой мощностью.

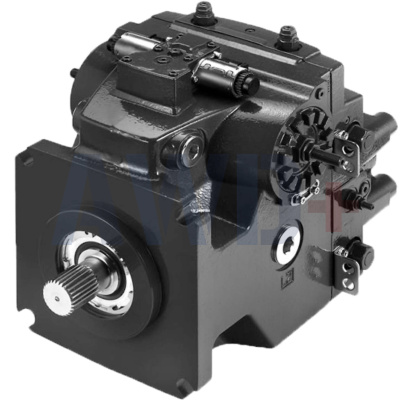

H1P210L - Аксиально-поршневой насос Danfoss Cерии H1 с наклонной шайбой и переменным рабочим объемом. Насос H1P210L предназначен для работы с устройствами в системах с замкнутым контуром.
Рабочий объем насоса 210 см3.
Вращение вала насоса H1P210L, левое.
Модели насосов Cерии H1 имеют встроенный насос подпитки для обеспечения подачи масла в систему и охлаждения, а также для регулирования расхода жидкости. Допустима установка вертикально. Если входной вал находится вверху, во время работы необходимо поддерживать давление в корпусе 1 бар. Корпус всегда должен быть заполнен гидравлической жидкостью.
Частота вращения вала может достигать до 2600 об/мин. На Серии насосов H1 Danfoss могут применяться разные системы управления: гидравлическое, электрогидравлическое пропорциональное, дискретное, механическое.
Насосы Danfoss серии H1 применяются в ГСТ (гидростатической трансмиссии) на таких машинах как бульдозер, экскаватор, трубоукладчик, мини-погрузчик, ратрак, а так же в буровых установках.
| Артикул | Полный код | Полный код |
| 83029537 | H1-P-210-L-A-A-A3-C1-N-D8-C-G2-NN-L-30-L-30-R-P-24-PN-NNN-NNN | H1P210LAAA3C1ND8CG2NNL30L30RP24PNNNNNNN |
| 83031877 | H1-P-210-L-A-A-A5-C1-B-D8-C-G3-NN-L-35-L-35-R-P-24-PN-NNN-NNN | H1P210LAAA5C1BD8CG3NNL35L35RP24PNNNNNNN |
| 83032409 | H1-P-210-L-A-A-A5-C2-B-D8-C-G2-NN-L-35-L-35-R-P-24-PN-NNN-NNN | H1P210LAAA5C2BD8CG2NNL35L35RP24PNNNNNNN |
| 83033076 | H1-P-210-L-A-A-A5-C1-B-D6-C-G3-NN-K-20-K-33-R-L-24-PN-NNN-NNN | H1P210LAAA5C1BD6CG3NNK20K33RL24PNNNNNNN |
| 83034606 | H1-P-210-L-A-A-A5-C2-N-D8-C-G3-NN-L-42-L-42-R-P-24-PN-C30-NNN | H1P210LAAA5C2ND8CG3NNL42L42RP24PNC30NNN |
| 83036452 | H1-P-210-L-A-A-A5-C1-N-D8-C-G3-NN-L-35-L-35-R-P-26-PN-NNN-NNN | H1P210LAAA5C1ND8CG3NNL35L35RP26PNNNNNNN |
| 83037089 | H1-P-210-L-A-A-A3-C2-N-D8-C-G2-NN-L-42-L-42-R-P-24-PN-NNN-NNN | H1P210LAAA3C2ND8CG2NNL42L42RP24PNNNNNNN |
| 83040903 | H1-P-210-L-A-A-A3-C2-N-D6-C-G2-H5-L-42-L-42-R-L-30-PN-NNN-NNN | H1P210LAAA3C2ND6CG2H5L42L42RL30PNNNNNNN |
| 83042352 | H1-P-210-L-A-A-A3-C1-N-D8-C-G3-NN-L-45-L-45-R-P-24-PN-NNN-NNN | H1P210LAAA3C1ND8CG3NNL45L45RP24PNNNNNNN |
| 83043487 | H1-P-210-L-A-A-A5-C2-N-D8-C-G2-H3-L-38-L-38-R-P-24-PN-NNN-NNN | H1P210LAAA5C2ND8CG2H3L38L38RP24PNNNNNNN |
| 83044723 | H1-P-210-L-A-A-A5-C1-N-D8-C-G2-H6-L-33-L-33-W-P-24-PN-NNN-NNN | H1P210LAAA5C1ND8CG2H6L33L33WP24PNNNNNNN |
| 83046065 | H1-P-210-L-A-A-A5-C2-N-D6-C-G3-NN-L-42-L-42-W-L-20-PN-NNN-NNN | H1P210LAAA5C2ND6CG3NNL42L42WL20PNNNNNNN |
| 83046466 | H1-P-210-L-A-A-E8-C2-N-D6-C-F8-H6-L-40-L-40-W-L-28-PN-NNN-NNN | H1P210LAAE8C2ND6CF8H6L40L40WL28PNNNNNNN |
| 83048163 | H1-P-210-L-A-A-ND-C3-B-D8-C-G3-NN-K-45-K-45-R-P-24-PN-C08-NNN | H1P210LAANDC3BD8CG3NNK45K45RP24PNC08NNN |
| 83050300 | H1-P-210-L-A-A-A5-C3-B-D8-C-G3-H6-K-45-K-23-W-P-24-PN-NNN-NNN | H1P210LAAA5C3BD8CG3H6K45K23WP24PNNNNNNN |
| 83050540 | H1-P-210-L-A-A-E8-C2-B-D6-C-G2-H3-L-35-L-35-W-L-30-PN-C23-NNN | H1P210LAAE8C2BD6CG2H3L35L35WL30PNC23NNN |
| 83051257 | H1-P-210-L-A-A-A5-C2-B-D8-C-G2-H6-L-35-L-35-W-P-24-PN-NNN-NNN | H1P210LAAA5C2BD8CG2H6L35L35WP24PNNNNNNN |
| 83051883 | H1-P-210-L-A-A-A5-C2-N-D8-C-G3-H3-L-42-L-42-R-P-24-PN-C30-NNN | H1P210LAAA5C2ND8CG3H3L42L42RP24PNC30NNN |
| 83053044 | H1-P-210-L-A-A-E8-C2-B-D6-C-G2-H3-L-33-L-33-W-L-30-PN-C23-NNN | H1P210LAAE8C2BD6CG2H3L33L33WL30PNC23NNN |
| 83053470 | H1-P-210-L-A-A-A5-C1-B-D6-C-G2-NN-L-38-L-38-R-L-24-PN-NNN-NNN | H1P210LAAA5C1BD6CG2NNL38L38RL24PNNNNNNN |
| 83054039 | H1-P-210-L-A-A-A5-C2-N-D8-E-G2-H2-L-42-L-42-R-P-28-P4-NNN-NNN | H1P210LAAA5C2ND8EG2H2L42L42RP28P4NNNNNN |
| 83054738 | H1-P-210-L-A-A-A5-C2-N-D8-C-G3-NN-L-40-L-40-W-P-24-PN-NNN-NNN | H1P210LAAA5C2ND8CG3NNL40L40WP24PNNNNNNN |
| 83055357 | H1-P-210-L-A-A-A5-C3-B-D6-C-G3-H3-L-42-L-42-R-L-28-PN-NNN-NNN | H1P210LAAA5C3BD6CG3H3L42L42RL28PNNNNNNN |
| 83055402 | H1-P-210-L-A-A-A5-C3-B-D8-C-G2-H6-L-33-L-33-N-E-34-PN-NNN-NNN | H1P210LAAA5C3BD8CG2H6L33L33NE34PNNNNNNN |
| 83055403 | H1-P-210-L-A-A-A5-C3-B-D8-C-G2-H4-L-33-L-33-N-E-34-PN-NNN-NNN | H1P210LAAA5C3BD8CG2H4L33L33NE34PNNNNNNN |
| 83055404 | H1-P-210-L-A-A-A5-C3-B-D8-C-G2-H5-L-33-L-33-N-E-34-PN-NNN-NNN | H1P210LAAA5C3BD8CG2H5L33L33NE34PNNNNNNN |
| 83055405 | H1-P-210-L-A-A-A5-C3-B-D8-C-G3-H4-L-33-L-33-N-E-34-PN-NNN-NNN | H1P210LAAA5C3BD8CG3H4L33L33NE34PNNNNNNN |
| 83055760 | H1-P-210-L-A-A-A3-C1-N-D8-C-G3-H3-L-40-L-40-R-P-24-PN-NNN-NNN | H1P210LAAA3C1ND8CG3H3L40L40RP24PNNNNNNN |
| 83055802 | H1-P-210-L-A-A-E8-C3-B-D6-E-G2-NN-L-35-L-35-W-L-30-P4-NNN-NNN | H1P210LAAE8C3BD6EG2NNL35L35WL30P4NNNNNN |
| 83055859 | H1-P-210-L-A-A-A5-C2-B-D6-C-G2-H3-L-35-L-35-W-L-24-PN-NNN-NNN | H1P210LAAA5C2BD6CG2H3L35L35WL24PNNNNNNN |
| 83055860 | H1-P-210-L-A-A-A5-C2-B-D6-C-G2-H5-L-35-L-35-W-L-24-PN-NNN-NNN | H1P210LAAA5C2BD6CG2H5L35L35WL24PNNNNNNN |
| 83055861 | H1-P-210-L-A-A-A5-C2-B-D6-C-G2-H6-L-35-L-35-W-L-24-PN-NNN-NNN | H1P210LAAA5C2BD6CG2H6L35L35WL24PNNNNNNN |
| 83057146 | H1-P-210-L-A-A-A5-C2-N-D8-C-G3-H2-L-42-L-42-R-P-24-PN-NNN-NNN | H1P210LAAA5C2ND8CG3H2L42L42RP24PNNNNNNN |
| 83057909 | H1-P-210-L-A-A-A5-C2-N-D8-C-G3-NN-L-42-L-42-R-P-24-PN-NNN-NNN | H1P210LAAA5C2ND8CG3NNL42L42RP24PNNNNNNN |
| 83058293 | H1-P-210-L-A-A-A3-C1-B-D6-C-F8-H6-K-25-K-28-R-L-24-PN-NNN-NNN | H1P210LAAA3C1BD6CF8H6K25K28RL24PNNNNNNN |
| 83058428 | H1-P-210-L-A-A-A5-C2-N-D8-C-G3-H2-L-42-L-42-R-P-24-PN-C30-NNN | H1P210LAAA5C2ND8CG3H2L42L42RP24PNC30NNN |
| 83058898 | H1-P-210-L-A-A-A4-C2-B-D8-C-G3-NN-L-33-L-33-R-P-24-PN-NNN-NNN | H1P210LAAA4C2BD8CG3NNL33L33RP24PNNNNNNN |
| 83059227 | H1-P-210-L-A-A-A5-C1-N-D6-C-G2-NN-L-40-L-40-R-L-24-PN-NNN-NNN | H1P210LAAA5C1ND6CG2NNL40L40RL24PNNNNNNN |
| 83061115 | H1-P-210-L-A-A-A5-C2-B-D8-C-G3-H2-L-42-L-42-R-P-24-PN-NNN-NNN | H1P210LAAA5C2BD8CG3H2L42L42RP24PNNNNNNN |
| 83063686 | H1-P-210-L-A-A-A5-C2-B-D8-E-G2-NN-L-42-L-42-R-P-24-P4-NNN-NNN | H1P210LAAA5C2BD8EG2NNL42L42RP24P4NNNNNN |
| 83063688 | H1-P-210-L-A-A-A5-C2-B-D8-E-G2-H6-L-42-L-42-R-P-24-P4-NNN-NNN | H1P210LAAA5C2BD8EG2H6L42L42RP24P4NNNNNN |
| 83065064 | H1-P-210-L-A-A-A5-C3-B-D8-C-G2-H4-L-35-L-35-N-E-34-PN-C25-NNN | H1P210LAAA5C3BD8CG2H4L35L35NE34PNC25NNN |
| 83065074 | H1-P-210-L-A-A-A5-C3-B-D8-C-G2-H4-L-35-L-35-N-E-34-PN-NNN-NNN | H1P210LAAA5C3BD8CG2H4L35L35NE34PNNNNNNN |
| 83065077 | H1-P-210-L-A-A-A5-C3-B-D8-C-G2-H6-L-35-L-35-N-E-34-PN-C25-NNN | H1P210LAAA5C3BD8CG2H6L35L35NE34PNC25NNN |
| 83065644 | H1-P-210-L-A-A-A5-C2-B-D8-C-G2-H4-L-35-L-35-W-P-24-PN-NNN-NNN | H1P210LAAA5C2BD8CG2H4L35L35WP24PNNNNNNN |
| 83065897 | H1-P-210-L-A-A-A5-C1-N-D8-C-G2-H6-L-35-L-35-W-P-24-PN-NNN-NNN | H1P210LAAA5C1ND8CG2H6L35L35WP24PNNNNNNN |
| 83066452 | H1-P-210-L-A-A-A5-C1-N-D8-C-G2-NN-L-35-L-35-W-P-24-PN-NNN-NNN | H1P210LAAA5C1ND8CG2NNL35L35WP24PNNNNNNN |
| 83066546 | H1-P-210-L-A-A-A5-C2-B-D6-C-G2-NN-L-33-L-33-R-L-24-PN-NNN-NNN | H1P210LAAA5C2BD6CG2NNL33L33RL24PNNNNNNN |
| 83067359 | H1-P-210-L-A-A-A5-C2-B-D8-C-G2-H3-L-35-L-35-R-P-24-PN-NNN-NNN | H1P210LAAA5C2BD8CG2H3L35L35RP24PNNNNNNN |
| 83067360 | H1-P-210-L-A-A-A5-C2-B-D8-C-G2-H6-L-35-L-35-R-P-24-PN-NNN-NNN | H1P210LAAA5C2BD8CG2H6L35L35RP24PNNNNNNN |
| 83067914 | H1-P-210-L-A-A-A3-C2-N-D8-C-G3-H3-L-40-L-40-R-P-24-PN-NNN-NNN | H1P210LAAA3C2ND8CG3H3L40L40RP24PNNNNNNN |
| 83068308 | H1-P-210-L-A-A-A4-C2-B-D8-C-G3-NN-L-33-L-20-R-P-24-PN-NNN-NNN | H1P210LAAA4C2BD8CG3NNL33L20RP24PNNNNNNN |
| 83069201 | H1-P-210-L-A-A-H9-C3-B-D6-E-G2-NN-L-35-L-35-W-L-30-P4-NNN-NNN | H1P210LAAH9C3BD6EG2NNL35L35WL30P4NNNNNN |
| 83070251 | H1-P-210-L-A-A-H9-C3-B-D6-E-G2-NN-L-35-L-35-W-L-30-P4-C23-NNN | H1P210LAAH9C3BD6EG2NNL35L35WL30P4C23NNN |
| 83072531 | H1-P-210-L-A-A-A5-C2-N-D8-C-G3-NN-L-35-L-35-N-E-24-PN-NNN-NNN | H1P210LAAA5C2ND8CG3NNL35L35NE24PNNNNNNN |
| 83072532 | H1-P-210-L-A-A-A5-C2-N-D8-C-F8-E1-L-35-L-35-N-E-24-PN-NNN-NNN | H1P210LAAA5C2ND8CF8E1L35L35NE24PNNNNNNN |
| 83073935 | H1-P-210-L-A-A-A3-C1-N-D8-C-G3-H6-L-35-L-35-W-P-24-PN-NNN-NNN | H1P210LAAA3C1ND8CG3H6L35L35WP24PNNNNNNN |
| 83075350 | H1-P-210-L-A-A-N1-C1-C-D6-C-G3-H6-L-40-L-40-R-L-26-P1-NNN-NNN | H1P210LAAN1C1CD6CG3H6L40L40RL26P1NNNNNN |
| 83075519 | H1-P-210-L-A-A-A3-C1-N-D8-C-G3-NN-L-35-L-35-R-P-20-PN-NNN-NNN | H1P210LAAA3C1ND8CG3NNL35L35RP20PNNNNNNN |
| 83075753 | H1-P-210-L-A-A-A4-C1-B-D8-C-F3-H6-L-42-L-42-R-P-28-PN-NNN-NNN | H1P210LAAA4C1BD8CF3H6L42L42RP28PNNNNNNN |
| 83077776 | H1-P-210-L-A-A-A5-C4-B-D8-C-G2-H6-L-38-L-38-R-P-24-PN-NNN-NNN | H1P210LAAA5C4BD8CG2H6L38L38RP24PNNNNNNN |
| 83078233 | H1-P-210-L-A-A-A5-C1-N-D8-C-G2-H5-L-35-L-35-W-P-24-PN-NNN-NNN | H1P210LAAA5C1ND8CG2H5L35L35WP24PNNNNNNN |
| 83080797 | H1-P-210-L-A-A-H9-C4-N-D8-C-G3-H6-L-33-L-33-R-P-26-PN-NNN-NNN | H1P210LAAH9C4ND8CG3H6L33L33RP26PNNNNNNN |
| 83083039 | H1-P-210-L-A-A-A2-C1-B-D6-C-G2-NN-L-42-L-42-R-L-30-PN-NNN-NNN | H1P210LAAA2C1BD6CG2NNL42L42RL30PNNNNNNN |
| 83083999 | H1-P-210-L-A-A-A5-C3-N-D6-C-F8-H5-K-38-K-38-R-L-28-PN-NNN-NNN | H1P210LAAA5C3ND6CF8H5K38K38RL28PNNNNNNN |
| 83084730 | H1-P-210-L-A-A-A5-C1-B-D6-C-G2-H6-L-35-L-35-W-L-24-PN-NNN-NNN | H1P210LAAA5C1BD6CG2H6L35L35WL24PNNNNNNN |
| 83085223 | H1-P-210-L-A-A-A5-C1-N-D8-C-G2-H3-L-25-L-25-W-P-24-PN-NNN-NNN | H1P210LAAA5C1ND8CG2H3L25L25WP24PNNNNNNN |
| 83085427 | H1-P-210-L-A-A-N2-C2-C-D8-E-G2-NN-L-42-L-42-W-P-30-P2-NNN-NNN | H1P210LAAN2C2CD8EG2NNL42L42WP30P2NNNNNN |
| 83087528 | H1-P-210-L-A-A-A5-C1-B-D8-E-G2-H3-L-38-L-38-W-P-24-P4-NNN-NNN | H1P210LAAA5C1BD8EG2H3L38L38WP24P4NNNNNN |
| 83087867 | H1-P-210-L-A-A-A2-C1-B-D8-C-G3-H2-L-45-L-45-R-P-30-PN-NNN-NNN | H1P210LAAA2C1BD8CG3H2L45L45RP30PNNNNNNN |
| 83090312 | H1-P-210-L-A-A-A5-C3-B-D8-C-G3-NN-L-25-L-25-W-P-28-PN-NNN-E51 | H1P210LAAA5C3BD8CG3NNL25L25WP28PNNNNE51 |
| 83091049 | H1-P-210-L-A-A-E8-C2-N-D6-C-G2-NN-L-35-L-35-W-L-30-PN-C23-NNN | H1P210LAAE8C2ND6CG2NNL35L35WL30PNC23NNN |
| 83091122 | H1-P-210-L-A-A-A5-C2-B-D8-C-G3-H6-L-35-L-35-R-P-24-PN-NNN-NNN | H1P210LAAA5C2BD8CG3H6L35L35RP24PNNNNNNN |
| 83091409 | H1-P-210-L-A-A-A3-C1-B-D8-C-G3-NN-L-38-L-38-R-P-30-PN-NNN-NNN | H1P210LAAA3C1BD8CG3NNL38L38RP30PNNNNNNN |
| 83093737 | H1-P-210-L-A-A-A5-C3-B-D8-C-G3-H6-L-23-L-23-W-P-24-PN-NNN-NNN | H1P210LAAA5C3BD8CG3H6L23L23WP24PNNNNNNN |
| 83094536 | H1-P-210-L-A-A-A5-C3-B-D8-C-F8-E1-L-38-L-38-R-P-24-PN-NNN-NNN | H1P210LAAA5C3BD8CF8E1L38L38RP24PNNNNNNN |
| 83094538 | H1-P-210-L-A-A-A5-C3-B-D8-C-G3-NN-L-38-L-38-R-P-24-PN-NNN-NNN | H1P210LAAA5C3BD8CG3NNL38L38RP24PNNNNNNN |
